FD CAN шина. что такое и как с ней работать?

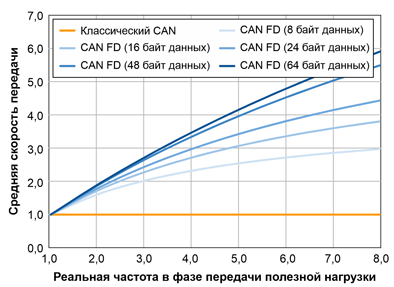

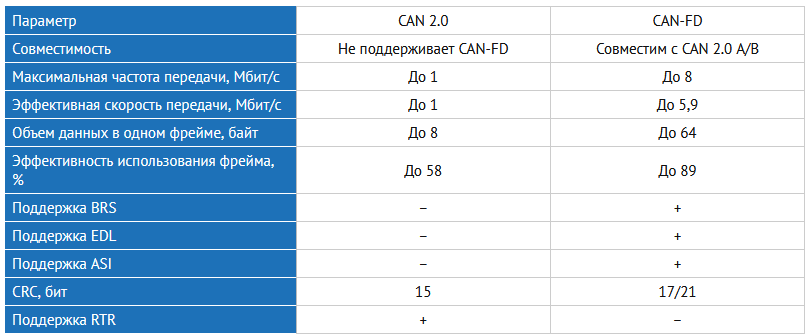

Для примера простоты показа разницы в работе будем использовать изображение выше.


Основное отличие кан шины нового поколения — это скорость на которой она может принимать данные ну и совместимость работы. Так же вместо 8 байт в пакете. FD CAN может передавать в пакете до 64 байт. Что в 8 раз больше и в конечном итоге сказывается на пропускной способности.

Так же у нас выше КПД при передаче фрейма и сохранение надежности передачи пакетов.

С одной стороны, принцип работы один и тот же, только для более высоких скоростей используется оборудование выше производительностью. Данная кан шина может быть использована только в тех местах, где между компонентами не более 40 метров. Т.е. только в не больших масштабах. При длине линии больше. Будут проблемы с передачей на такой скорости.

В начале передачи фрейма арбитраж происходит на частоте обычной кан шины. И если выигрывает фрейм с форматом FD CAN он передает данные на более высокой скорости. Так конец и начало передается в формате CAN 2.0, а передача содержимого в формате FD CAN. ID пакета так же в формате 11 или 29 битных индефикаторов.

Остальная работа и передача данных устроена похожим образом. Единственный вопрос, что все пакеты идут большим приоритетом, и пока на рынке мало оборудование. Которые поддерживают чтение и отправку данных по формату FD CAN.
